Authentication by IP Ranges

Overview​

This integration allows automatic authentication for specific users based on their originating IP address. Our platform validates the user's IP against configured allowed IPs or ranges, enabling seamless access without manual login.

Admin Role Limitation – click to expand
caution

Authentication methods based on IP, URL referrer, LTI, or SAML are designed for end-user access only.
When the identifier corresponds to an administrator account, the platform intentionally starts the session with regular user permissions to prevent privilege escalation.

Administrators who need to access the Control Panel must:

  1. Set a password to their account.
  2. Log out of the current integration-based session.
  3. Log back in using email + password to regain full administrator privileges.

Customers can provide individual IPs or IP ranges from which their users will access the store. This feature supports two modes:

  1. Direct: Users access from a controlled physical location (e.g., university network).
  2. Proxy: Users access remotely through a configured proxy (e.g., EZProxy).

Pre-requisites​

The following requirements must be met to use this feature:

  1. You must be an Enterprise plan subscriber.

How It Works​

When a user accesses the store from a configured IP address or range, the system checks this address against the allowed list. If a match is found, the user is authenticated automatically without needing to log in manually.

The system supports both direct IP authentication and proxy-based authentication, allowing access from non-direct locations via known proxy IPs.

Our authentication service:

  • Validates IPs against configured ranges (per user or entry point)
  • Authenticates users automatically
  • Stores session metadata to track the automatic login source
  • Records activity logs with the matched IP and range
  • Can automatically create new user accounts when needed

Configuration Methods​

There are two ways to assign IP authentication:

  1. User-Based Assignment: Assign IPs or ranges directly to a user. Note that with this method, all users accessing from the configured IP ranges will be authenticated as the same user account, meaning reading statistics cannot be individualized. For individual user statistics, use the Entry Point-Based Assignment method instead.
  2. Entry Point-Based Assignment: Assign IPs or ranges to an Entry Point and authenticate users using email headers

User-Based Assignment​

For both direct and proxy methods, the system requires the IP or IP ranges from where users are expected to connect. If using a proxy, you'll need to configure the proxy's IP.

Steps to configure:

  1. Go to Control Panel > Users
  2. Create a new user or select an existing one

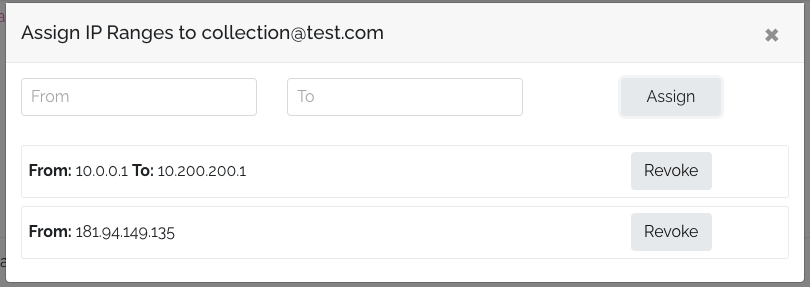

  3. Set the IP or IP ranges using the option Assign IP ranges in the dropdown menu

assign-ip

To add a single IP, enter it in the "From" field and press the assign button, leaving "To" empty. For an IP range (e.g., all IPs between 10.0.0.1 to 10.200.200.255), set "From: 10.0.0.1" and "To: 10.200.200.255". Any user connecting from an IP within that range will be automatically logged in.

Entry Point-Based Assignment​

This method allows you to assign IPs or ranges to a specific entry point, which can authenticate users based on their IP address.

Steps to configure:

  1. Navigate to Settings > Integrations

  2. Create a new Entry Point for IP Login or select an existing one

  3. Use the Assign IP ranges option to set the IP or IP ranges

  4. Configure content access by choosing one of two options:

    • Direct access to all content: Grant access to all store content
    • Assign a plan: Select a specific plan to assign to users For entry point-based authentication, the system requires the following:

  5. A valid IP address or range that matches the configured entry point

  6. The HTTP header X-USERNAME containing the user's email address

When a request comes from an authorized IP with the X-USERNAME header:

  • The system checks if a user account exists with that email
  • If found, authenticates the user automatically
  • If not found, creates a new user account with that email
  • Grants access based on the entry point configuration (direct access or plan)

This allows organizations to authenticate users individually while still using IP-based access control.

Important Distinction Between Access Methods​

When configuring an entry point, administrators have two options for providing content access:

  • Direct access to all content: This access is limited to the user's browser session only. Users authenticated this way will not have access through mobile or desktop applications. The access is temporary and tied to their web browser session.

  • Plan assignment: When you assign a plan to the entry point (which may also give access to all content), the user receives permanent access credentials. This allows them to access content not only through the web browser but also through mobile and desktop applications.

Choose the appropriate method based on your requirements for user mobility and access persistence.

Implementation​

Automatic Authentication​

The most streamlined approach is to let users be authenticated automatically when they access protected content:

  1. Users connecting from configured IP ranges will be automatically authenticated when accessing the library section (/library), a publication page, or the reader
  2. Users can manually log out if needed and log in with different credentials
  3. Automatic login will trigger again when navigating back to protected content

On-Demand Authentication (Legacy Method)​

For implementations using the legacy method:

  1. Create a button or hyperlink
  2. Set the route to https://{store_final_domain}/auth/ip
<a href="https://{store_final_domain}/auth/ip">Login User</a>
<button type="button" onclick="loginUser()">Login User</button>

<script>
  function loginUser() {
    window.location.href = 'https://{store_final_domain}/auth/ip';
  }
</script>
  1. To redirect users to a specific URL after authentication, use the intended_url parameter:
<a
  href="https://{store_final_domain}/auth/ip?intended_url=https://{store_final_domain}/reader/publication-name"
  >Login User</a
>

Proxy Configuration​

For proxy implementations, you must first configure the stanza. This is particularly important for EZProxy configurations.

HTTPMethod values are necessary for secure connections between the proxy and our server.

Example stanza configuration:

Title Publicala Editions
HTTPHeader -request -process X-XSRF-TOKEN
HTTPHeader -request -process X-CSRF-TOKEN
HTTPMethod PUT
HTTPMethod PATCH
HTTPMethod DELETE
HTTPMethod OPTIONS
HTTPMethod TRACE
HTTPMethod CONNECT
URL app.publica.la/auth/ip
HJ app.publica.la
DJ app.publica.la

After configuring the stanza, follow the steps for direct configuration, adjusting for proxy implementation.

Troubleshooting​

Common issues include:

  • Incorrect IP or IP range configuration
  • Users connecting from non-configured IP addresses

In these cases, users will see the login form instead of being automatically authenticated.

To troubleshoot, add ?debug=true to the URL:

https://{store_final_domain}/auth/ip?debug=true

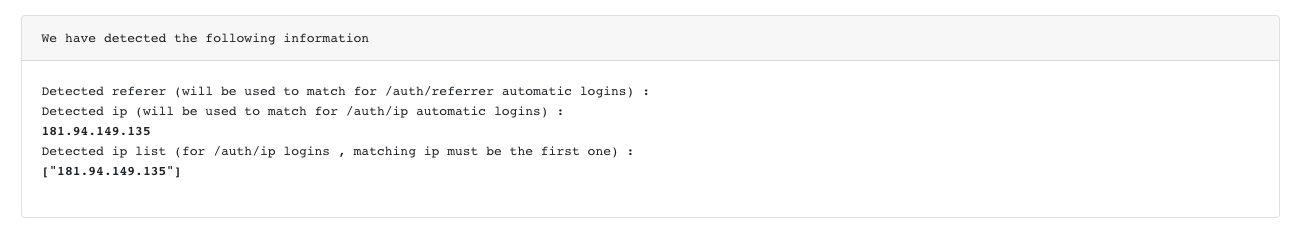

This will display information about the connecting IP address and configured ranges, helping identify configuration issues:

debug screen

When using entry point authentication, the debug screen will also show if the X-USERNAME header is being properly sent and whether it contains a valid email address.

Tip: You can use tools like IP location to determine IP addresses for configuration. Alternatively, add a console alias with alias ip="curl icanhazip.com" and run ip to see your current IP.
